Deflection Fracturing Technology

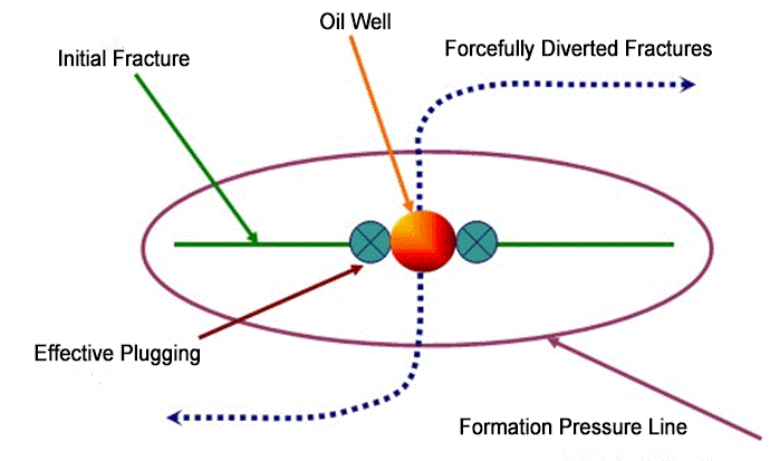

Mechanism:

Deflection fracturing technology refers to the injection of a fracture diverting agent during the fracturing process. Rooted in the principles of bridge plugging, the technology is aimed at achieving the plugging of hydraulic fractures by using the plasticity of the temporary plugging agent and the stiffness of the proppant by controlling the hydraulic fracturing operation parameters and thus increasing the net hydraulic fracture pressure. Through effective plugging and other technical controls, the fractures are forced to divert.

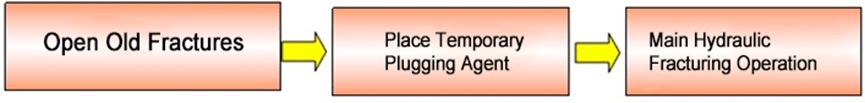

Process flow of plugging and diversion：

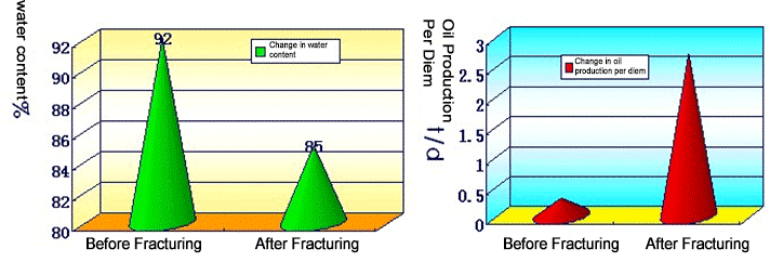

Application results:

As of now, deflection fracturing field tests have been conducted on 15 wells. Based on the production conditions of the oil zones, the forcefully diverted fracture technique utilizing a temporary plugging agent was employed. Analysis shows that the diversion of the fractures was successfully achieved, with a diversion rate of more than 80%. As of the present, positive results have been obtained in 100% of the deflection fracturing operations.

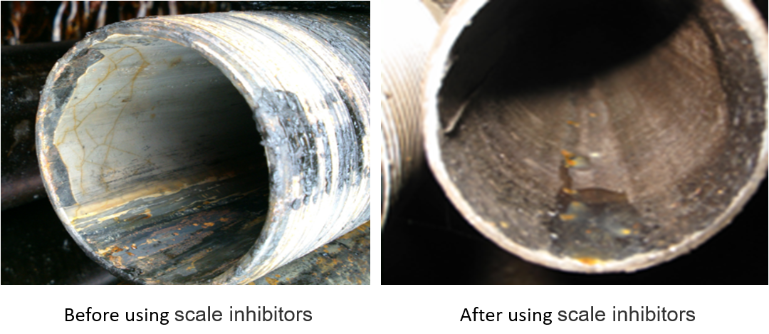

Anti-corrosion and Anti-scale for oil wells

The corrosion inhibitors and scale inhibitors have been developed to suit various types of oil wells with high sulfur content (> 30mg/L) and high SRB(> 250 /mL), It had established anti-corrosion and anti-scale technology systems.
