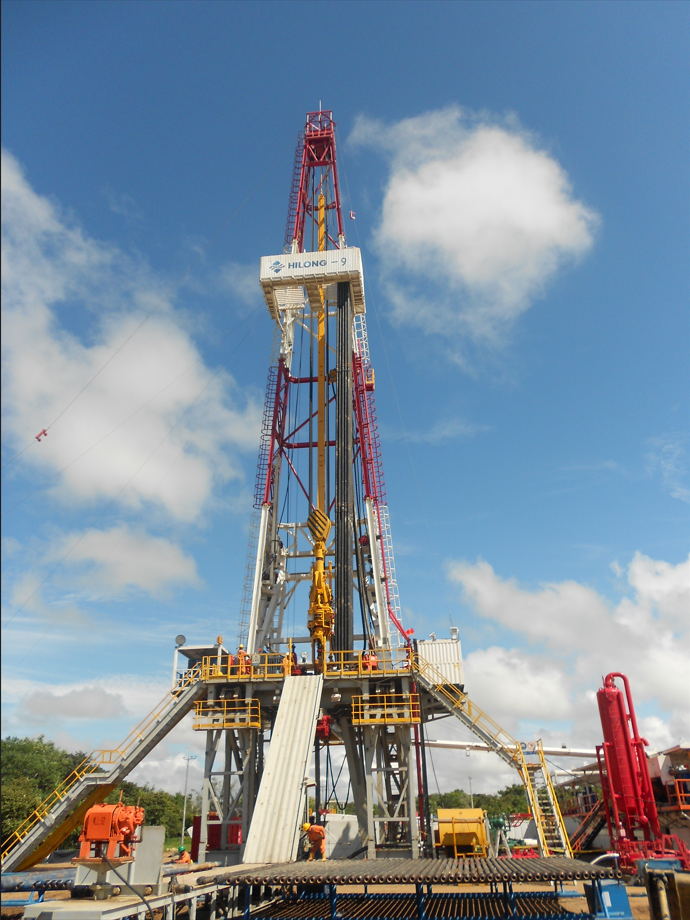

HL-9

Rig Type：ZJ-50DB/1500hp/VFDCountry：Pakistan
Basic Information
Rating 1500 HP
Hook  Load 700,000 lbs@ 12 lines
Drilling Depth 16,500 ft   5000m
MAST
Height 147.5 ft   45m
Static Hook Load 700,000 lbs
SUBSTRUCTURE
Floor Height 29.5 ft   9m
Clear Height 25 ft   7.6m
Rotary Capacity 700,000 lbs
Setback Capacity 400,000 lbs
DRAWWORK
Rated Power 1500 HP
Capacity 700,000 lbs@ 12 lines
Drill Line Size 1 3/8”

HOISTING & ROTATING EQUIPMENT
Block Model TC315
Block Capacity 700,000 lbs
Rotary Table Model ZP375
Rotary Table Clearance 37-1/2 in
TOP DRIVE SYSTEM
Top Drive Model Varco-TDS11SA
Top Drive Capacity 500 ton
Torque-Continuous 37,500 ft lb @ 125 rpm
POWER GENERATION
Engines 4set,CAT 3512,1090 Kw@1500rpm
Generators 4set,SR4, 600V,50Hz,1500kVA
VFD VFD RIG
WELL CONTROL EQUIPMENT
Annular 13-5/8”, 5,000 psi
Double Ram 13-5/8”, 5,000 psi
Single Ram 13-5/8”, 5,000 psi
BOP Control Unit FKQ800-7
MUD SYSTEM
Mud Pump 3set, BOMCO, F-1600 , 5000psi, Triplex
Shale Shaker 3set, NOV Brandt King Cobra VENOM
Mud cleaner

combo type shale shaker with desander and desilter

desander 100mmx16 Cones

desilter 250mmx3 Cones
Centrifuge LW450X1000-N
Total Tank Volume 2500 bbl
Active Tank  Volume 1500 bbl
Reserve Tank Volume 1000 bbl
