Introduction
Coiled tubing unit is known as the "universal working machine" .It is widely used in drilling, completion, WO, oil&gas production, gathering &transportation and etc..It plays an increasingly important role in the exploration and development of oil&gas fields. Coiled tubing technology can perform flushing & sand removal, acidizing, wax removal, plug removal, cement squeezing, gas lifting, fishing, milling, fracturing, well logging and other operations for onshore and offshore oil&gas wells.
Coiled tubing operations have the advantages of quick response, snubbing operation, rapidly RIH & POOH, high operating efficiency, and low operating risks. The two sets of electric-driven coiled tubing units provided by HILONG have greater advantages and stronger competitiveness than conventional coiled tubing unit.
(1) More accurately. Electric-driven coiled tubing operates, using electronically controlled injector and reel. The unit has high precision, responsive response, and more precise operation. The minimum stable operating speed is less than 0.033 ft/min; hydraulic coiled tubing unit are usually greater than 1.64 ft/min.
(2) Smarter. Digital instrument display & control reduce labor intensity. It improves operation safety and system reliability through software protection. Human-computer interaction is more friendly, and the degree of automation and intelligence is highly by using CNC operating room and intelligent seats.
(3) More security. The operation is safer and the fault complexity rate is greatly reduced by using intelligent assistance system and emergency automatic locking system.
(4) More powerful. Have large-capacity reel, the operating well depth up to 23000 ft, operating capacity is highly.
(5) More environment-friendly. Have low noise and low emissions during operation, environment-friendly equipment.
Supporting
(1) Coiled tubing unit

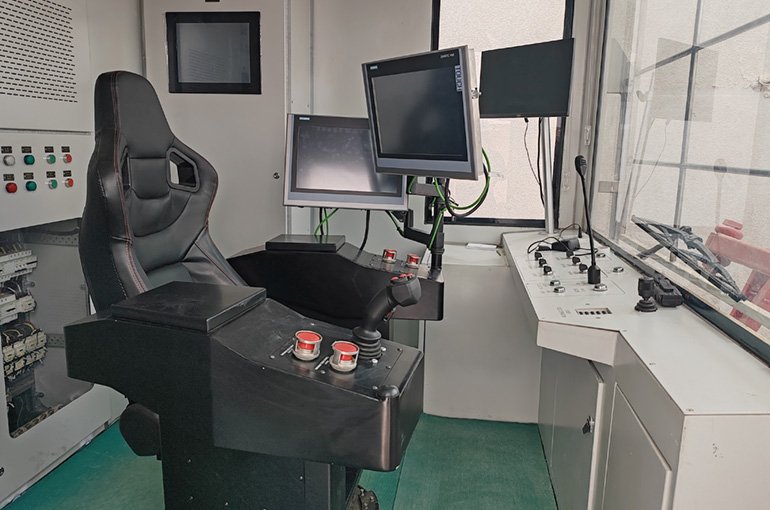

① Cabin. Electrified control, the operation interface is a combination of display screen and smart seat.

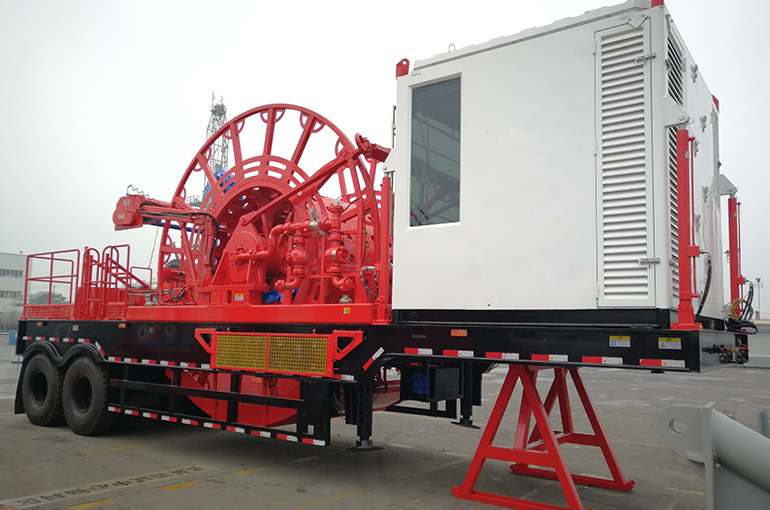

② Reel. The reel volume is 1 1/2” - 26247 ft, 2”- 22966 ft.
③Hydraulic station: Electrical control system, automatic locking pressure if power off. Equipped with local and remote operations.

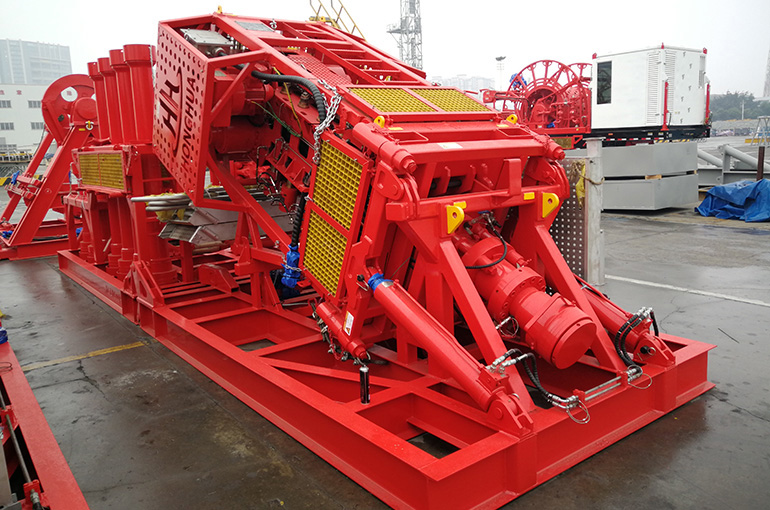

④Injector. Max. Lifting capacity is 100,000 lbs. Max. Snubbing capacity is 50,000 lbs. It is suitable for 1 1/2” - 2 7/8”coiled tubing.
⑤ Stripper. 4 1/16” -15,000 psi dual-stripper.
⑥ BOP. 5 1/8” - 15,000 psi four-rams BOP.
(2) Fluid pump unit

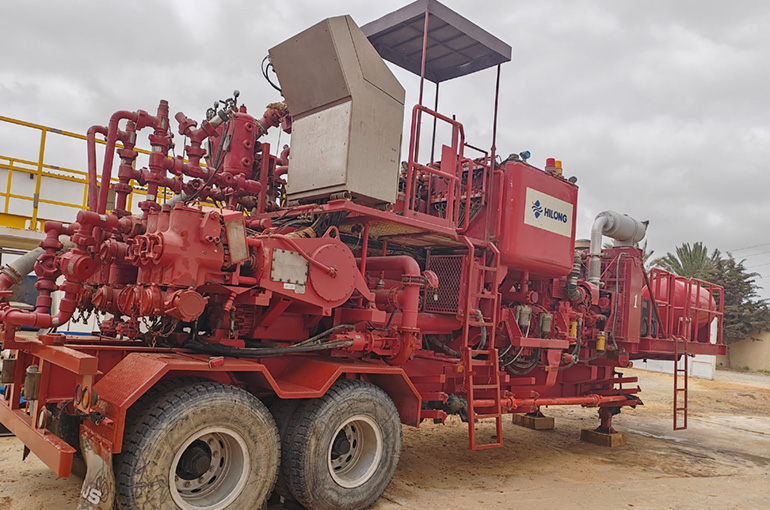

① Twin-pump unit. Two pump can work independently, and can achieve one use and one backup by the unit. The rated power is 475 HP by single pump.

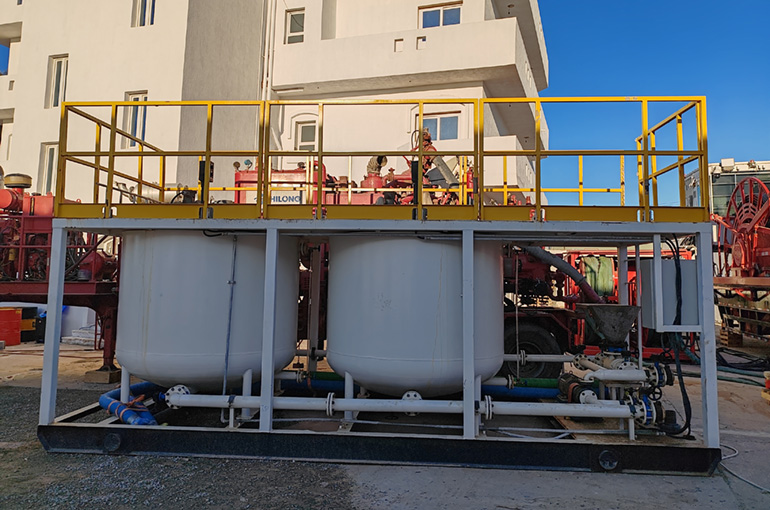

② Mixing-equipment. It can mix acid and other working fluids rapidly.

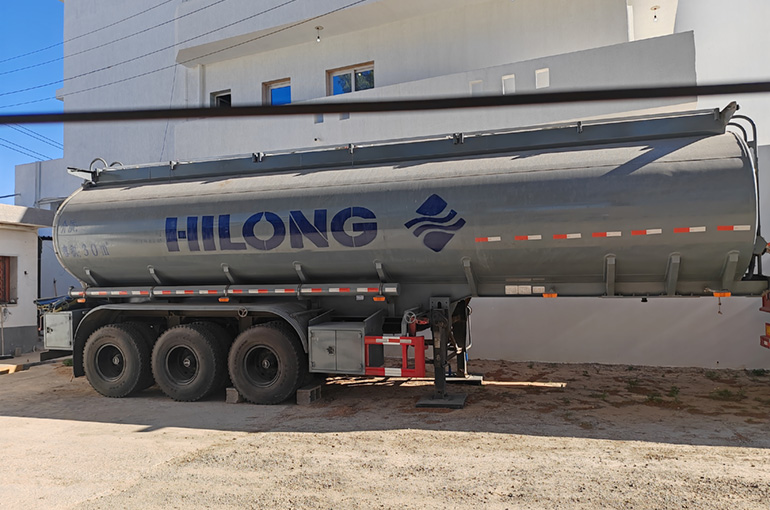

③ Truck tank. Equipped with acid and water truck tanks.
(3) LN2 pump

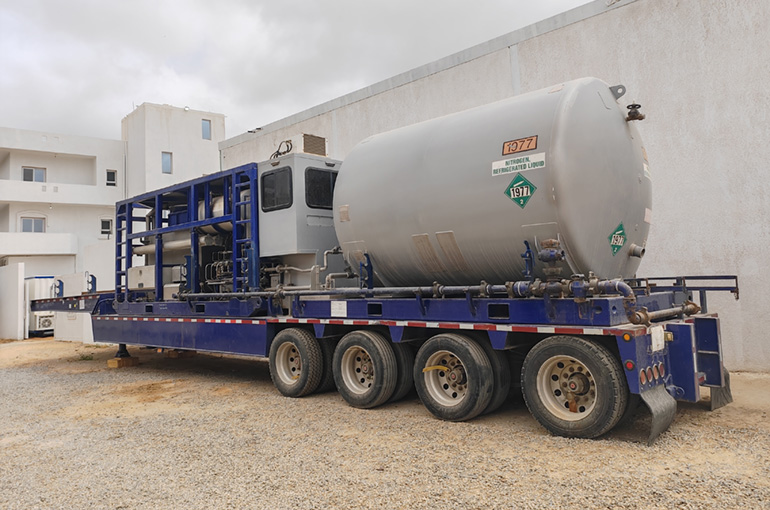

① 180K model LN2 pump, the pump rate can reach 3000 SCFM.
② LN2 tanks, the LN2 capacity is 13,200 gal.
(4) Coiled tubing team
The coiled tubing team is professional and meets the domestic and international markets.
Operation Performance
(1) Libyan market
Coiled tubing technical services which has formed long-term operating capabilities in the Libyan market. It provides for client with coiled tubing solutions and technical services for oil&gas wells. Also can provide technical services such as coiled tubing acidizing, gas lifting, scale remove, plug removal, well cleaning, and fishing.
(2) Oman market
Explore the Oman market actively. It forms optical fiber coiled tubing logging technical services, and coiled tubing acidizing, gas lifting, scale remove, well cleaning and other technical services by follow client requirements.
Expectation
HILONG electric-driven coiled tubing is in a leading position in terms of intelligence and automation. It is with higher operating efficiency and lower operating risks. HLONG is building a coiled tubing team with advanced equipment and strong technology to provide customers with better, more efficient, safer and more economical services.
